Product Details:
|
| Power Source: | AC POWER | Input Power: | ≤185W |
|---|---|---|---|
| Voltage: | 115V/60Hz | Rated Pressure: | 20psi |
| Rated Flow: | 0.96 M³/h @ 20psi | Lock-up Pressure: | ≥26psi |
| Ambient: | 5-40°C | Insulation Class: | B |
| Thermal Protector: | Auto Reset 135±5°C | Net Weight: | 2.15Kg |
| Restart Press: | 0 Kpa | ||
| High Light: | 1L Portable Oxygen Concentrator Compressor,Portable Oxygen Concentrator Compressor 185W,Air Compressor Oil Free 115V 60HZ |
||

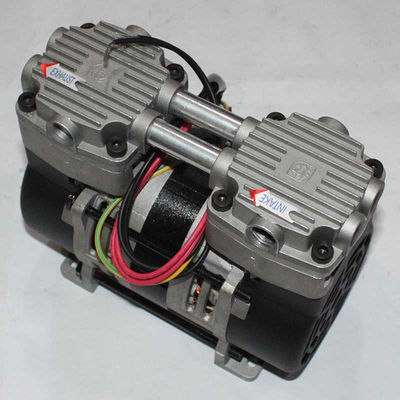

GSE compressor for 1-3L oxygenerator , ZW100D2-36/1.4 , 115V/60HZ , 185W
Product Descriptions:
ZW100D2-36/1.4 is specially designed for the foreign market with a voltage of 115V/60HZ. The flow rate of 16l/min @ 140kpa can greatly meet the demand of 1-2 liter oxygen generator. At the same time, low noise, long life and other characteristics, it is the best choice for overseas OEM and ODM oxygenerator manufacturers.
Specifications:
| Model | ZW100D2-36/1.4 |
| Rated Voltage(V) | 115V/60Hz |
| Input Pover(W) | ≤185W |
| Rated pressure(kPa) | 140 kPa |
| Rated flow(LPM) | 16L/min/140Kpa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Thermal protector | Auto reset 135±5°C |
| Net weight(Kg) | 2.15Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
