Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC 24V |
|---|---|---|---|
| Input Power(W): | ≤160Watts | Rated Pressure: | 140Kpa |
| Rated Flow: | ≥30min @140KPa | Noise: | ≤55dB(A) |
| Thermal Protector: | N/A | Rated Speed: | 2000RPM 24V |
| Insulation Class: | B | Net Weight: | 3.2Kg |
| Ambient: | 5-40℃ | Restart Pressure(Kpa): | 0KPa |
| High Light: | GSE Oxygen Concentrator Compressor,Oxygen Concentrator Compressor DC24V,O2 Compressor For Portable Oxygenerator 160W |
||

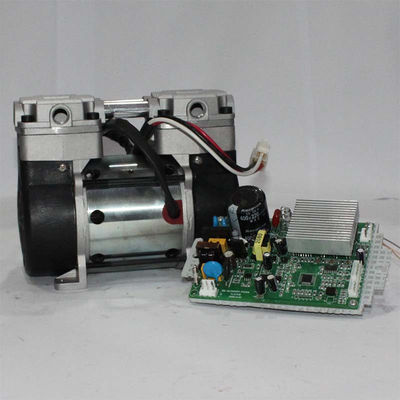

GSE ZW100Z24-30/1 .4-GD123 , for portable oxygenerator , DC24V , 160W
Product Descriptions:
No lubrication or oil-based maintenance required - The wobble piston oil-less air compressor does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls.
No need for an external lubrication system - The wobble piston oil-less air compressor does not require an external lubrication system like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. Additionally, the air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance. This eliminates the need for an external lubrication system and reduces the complexity of the installation and maintenance.
Specifications:
| Model | ZW100Z24-30/1 .4-GD123 |
| Rated Voltage(V) | DC 24V |
| Input Power(W) | ≤160W |
| Rated pressure(kPa) | ≥140KPa |
| Rated flow(LPM) | ≥30L/Min@140KPa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Net weight(Kg) | 3.2Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double head wobble piston
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
