Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC24V (20.4V~30V) |
|---|---|---|---|
| Input Power(W): | ≤650W @150KPa/24V | Rated Pressure: | 150KPa |
| Rated Flow: | ≥130L/min@150KPa/24V | Noise: | ≤71dB(A) |
| Current: | ≤27A @150KPa/24V | Thermal Protector: | N/A |
| Rated Speed: | 1700-2000 RPM | Insulation Class: | B |
| Ambient: | 5-40℃ | Restart Pressure(Kpa): | 0KPa |
| High Light: | GSE Oxygen Concentrator Compressor,Oxygen Concentrator Compressor DC24V,Portable Oxygen Compressor Oilless 650W |
||

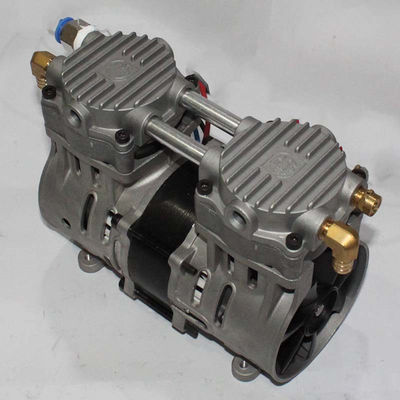

GSE DC compressor , ZW500Z24-130/1.5 , onboard oxygen concentrator, DC24V , 650W
Product Descriptions:
Reliable, low-vibration operation - The wobble piston oil-less air compressor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement. This ensures smooth and reliable operation with minimal vibration, resulting in longer service life and improved performance.
Longer service life - The wobble piston oil-less air compressor is designed to offer a longer service life than traditional air compressors. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. Additionally, the air cushion surrounding the piston helps to reduce the wear and tear on the piston and cylinder walls, resulting in a longer service life. This makes the compressor an ideal choice for applications that require a reliable and long-lasting performance.
Specifications:
| Model | ZW500Z24-130/1.5 |
| Rated Voltage(V) | DC24V (20.4V~30V) |
| Input Power(W) | ≤650W @206.8KPa/24V |
| Rated pressure(kPa) | ≥150KPa |
| Rated flow(LPM) | ≥130L/min@150KPa/24V |
| Ambient(°C) | 0-40°C |
| Insulation class | B |
| Net weight(Kg) | ≤7.0Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double head wobble piston
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
