Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC26V (22V-30V) |
|---|---|---|---|
| Input Power(W): | ≤350W@150KPa/24V | Rated Pressure: | 150KPa |
| Rated Flow: | ≥75L/Min@150KPa/24V | Noise: | ≤65dB(A) |
| Current: | ≤15A@150KPa/24V | Thermal Protector: | N/A |
| Rated Speed: | 1700-1800RPM | Insulation Class: | B |
| Ambient: | 0-40℃ | Restart Pressure(Kpa): | 0KPa |
| High Light: | DC26V Oil Less Piston Compressor,Oil Less Piston Compressor 350W,GSE Air Compressor For Oxygen Concentrator |
||

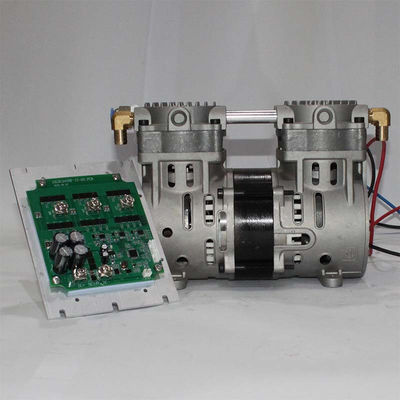

GSE DC compressor , ZW300Z24-70/1.5-GZ002 , onboard oxygenerator, DC26V , 350W
Product Descriptions:
No lubrication or oil-based maintenance required - The wobble piston oil-less air compressor does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls.
Longer service life - The wobble piston oil-less air compressor is designed to offer a longer service life than traditional air compressors. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. Additionally, the air cushion surrounding the piston helps to reduce the wear and tear on the piston and cylinder walls, resulting in a longer service life. This makes the compressor an ideal choice for applications that require a reliable and long-lasting performance.
Specifications:
| Model | ZW300Z24-70/1.5-GZ002 |
| Rated Voltage(V) | DC26V (22V-30V) |
| Input Power(W) | ≤350W@150KPa/24V |
| Rated pressure(kPa) | ≥150KPa |
| Rated flow(LPM) | ≥75L/Min@150KPa/24V |
| Ambient(°C) | 0-40°C |
| Insulation class | B |
| Net weight(Kg) | ≤6.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double head wobble piston
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
