Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC 24V |
|---|---|---|---|
| Input Power(W): | ≤123Watts | Rated Pressure: | 62KPa/-49kpa |
| Rated Flow: | ≥25 L/min@24V @62KPa | Rated Flow(Vacuum): | ≥29 L/min@24V @-49KPa |
| Noise: | ≤65dB(A) | Rated Speed: | 3000RPM 24V |
| Insulation Class: | B | Net Weight: | 1.28Kg |
| Ambient: | 5-40℃ | ||
| High Light: | VPSA Oxygen Generator Compressor,Oxygen Generator Compressor 123W,123W Air Compressor Used In Oxygen Concentrator |
||

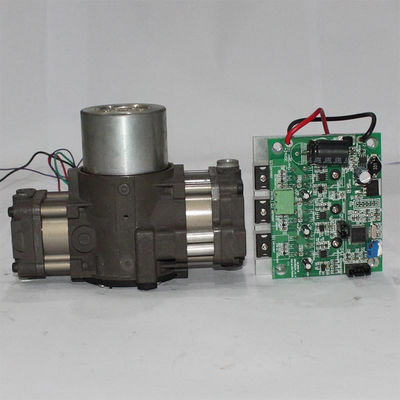

GSE PW120Z24-US016 , VPSA compressor , for oxygen generator , DC24V , 123W
Product Descriptions:
A VPSA compressor (Vacuum Pressure Swing Adsorption) is a type of compressor that uses an adsorption process to compress a gas. It works by adsorbing the gas on the surface of a material, usually activated carbon, and then compressing it by applying a vacuum. The process is then repeated to obtain a higher pressure. VPSA compressors are often used in applications such as vacuum distillation, gas separation, and gas storage.
Specifications:
| Model | PW120Z24-US016 |
| Rated Voltage(V) | DC 24V |
| Input Power(W) | ≤123W |
| Rated pressure(kPa) | 62KPa/-49KPa |
| Rated flow(Vaccum) | ≥29 L/min@24V @-49KPa |
| Rated flow(LPM) | ≥25 L/min@24V @62KPa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Net weight(Kg) | 1.28Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1.VPSA
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
