Product Details:
|
| Power Source: | AC | Input Power: | ≤390W @206.8Kpa/220V/50Hz |
|---|---|---|---|
| Voltage: | 220V/50Hz (Range:187V-242V) | Lock-up Pressure: | ≥250KPa |
| Current: | ≤1.9A | Rated Pressure: | 206.8KPa |
| Rated Flow: | 73L/min@206.8Kpa/220V/50Hz | Noise Level: | ≤61dB @206.8Kpa |
| Ambient: | 5~40℃ | Insulation Class: | B |
| Thermal Switch: | KW-135℃ | Net Weight: | 1.35LBS |
| Restart Pressure: | 0 Kpa | ||
| High Light: | 390W Compressor For Oxygen Concentrator,Compressor For Oxygen Concentrator 5L,Air Compressor For Medical Oilless 50Hz |
||

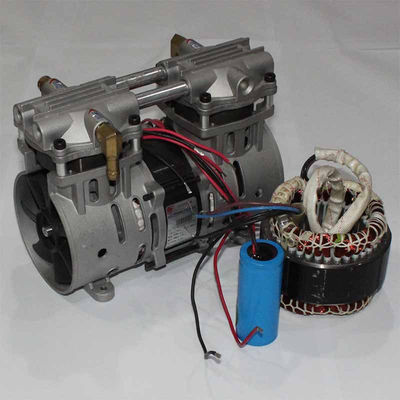

ZW280A-75/2-GSE 5L oxygen generator compressor , oil-less , 220V/50Hz , 390W
Product Descriptions:
Unlike the traditional link piston pump, the swing piston pump does not have a piston pin connecting the piston and the piston rod. Instead, the piston and piston rod are usually one component. The piston rod is mounted on an eccentric bearing device, which is mounted on the motor shaft, converting the motor's rotational energy into the linear motion of the piston in the cylinder.
Specifications:
| Model | ZW280A-75/2-GSE |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤390W @206.8Kpa/220V/50Hz |
| Rated pressure(kPa) | 206.8KPa |
| Rated flow(LPM) | ≥73L/min@206.8Kpa/220V/50Hz |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 1.35LBS |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
