Product Details:
|
| Power Source: | AC POWER | Voltage Input: | AC 220V/50Hz |
|---|---|---|---|
| Power: | ≤90W | Rated Flow: | ≥6.7L/min@80KPa |
| Free Flow: | ≥9L/min | Current: | ≤0.8A |
| Noise: | ≤64dB(A) | Ambient: | 10-40°C |
| Insulation Class: | B | Thermal Protector: | KW-135℃ |
| Net Weight: | 1.5Kg | Restart Pressure: | 0 Kpa |
| High Light: | Medical Nebulizer Compressor Motor 6.7/Min,Nebulizer Compressor Motor 90W,Nebulizer Machine Motor 90W |
||

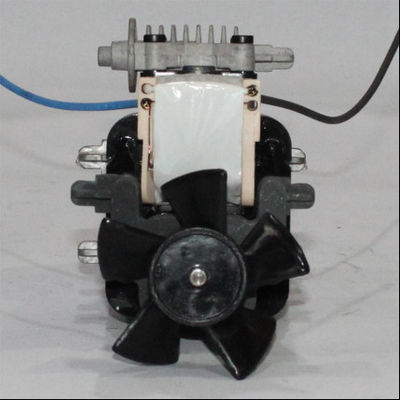

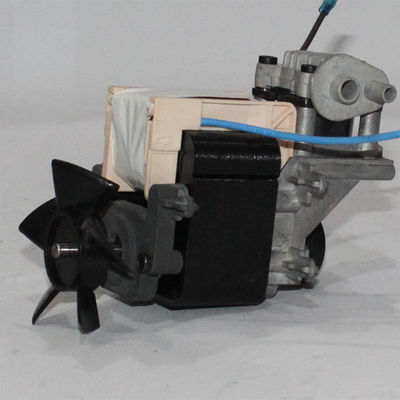

Medical Nebulizer motor , ZWS100A-6/1.1B-GD084 , 6.7/min , 90W
Product Descriptions:
GSE ZWS100A-6/1.1B-GD084 oil-free air compressor is ideal for medical nebulizers,and designed for easy and quick installation. All the components are designed to be easily assembled and connected, eliminating the need for complicated wiring or plumbing. Additionally, the compact size of the compressor makes it easy to fit into tight spaces, allowing for quick and easy installation.
Reliable, low-vibration operation - The wobble piston oil-less air compressor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement.
Durable construction - The wobble piston oil-less air compressor is designed with a durable construction that is capable of withstanding high pressures and temperatures. The piston is made of a high-strength alloy steel and is designed to resist wear and tear. Additionally, the cylinder walls are made of a corrosion-resistant material, ensuring a longer service life even in harsh environments.
Specifications:
| Model | ZWS100A-6/1.1B-GD084 |
| Voltage input(V) |
AC 220V/50Hz
|
| Power(W) | ≤90W |
| Free flow(LPM) |
≥9L/min |
| Rated flow(LPM) | ≥6.7L/min@80KPa |
| Ambient(°C) | 10-40°C |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 1.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Single piston
2. Positive pressure
3. High performance cup seals
4. High quality bearings
Advantages:
1.Oil less operation
2.Long life
3.Free maintainance
4.Minitype
