Product Details:
|
| Power Source: | AC POWER | Voltage Input: | 220V/50Hz |
|---|---|---|---|
| Power: | ≤80W | Max Pressure: | ≥35PSI@198V/50Hz |
| Rated Flow: | ≥5.0L/min@17PSI | Current: | ≤0.7A@17PSI@220V/50Hz |
| Noise: | ≤64dB(A) (1meter From Compressor Head) | Ambient: | 10-40°C |
| Insulation Class: | B | Thermal Protector: | KW-150℃ |
| Net Weight: | 1.5Kg | Restart Pressure: | 0 Kpa |
| High Light: | 80W Nebulizer Compressor Motor,Nebulizer Compressor Motor Medical 5.0/Min,Long Life Piston Kompresor Oilless GSE |
||

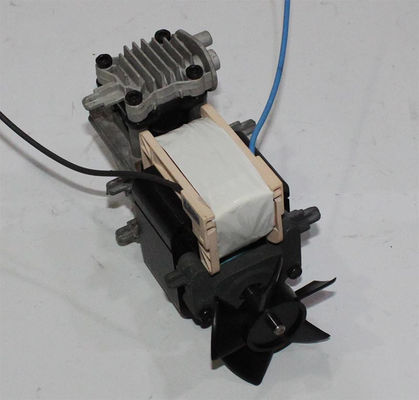

Medical Nebulizer compressor , long life , GSE ZWS100A-6/1.2-GD304 , 5.0/min , 80W
Product Descriptions:
ZWS100A-6/1.2-GD304 GSE nebulizer assembly is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation.
Reliable, low-vibration operation - The wobble piston oil-less air compressor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement.
Longer service life - The wobble piston oil-less air compressor is designed to offer a longer service life than traditional air compressors. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. Additionally, the air cushion surrounding the piston helps to reduce the wear and tear on the piston and cylinder walls, resulting in a longer service life.
Specifications:
| Model | ZWS100A-6/1.2-GD304 |
| Voltage input(V) | 220V/50Hz |
| Power(W) | ≤80W |
| Max pressure(Pa) | ≥35PSI@198V/50Hz |
| Rated flow(LPM) | ≥5.0L/min@17PSI |
| Ambient(°C) | 10-40°C |
| Insulation class | B |
| Thermal protector | KW-150℃ |
| Net weight(Kg) | 1.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Single piston
2. Positive pressure
3. High performance cup seals
4. High quality bearings
Advantages:
1.Oil less operation
2.Long life
3.Free maintainance
4.Minitype
