Product Details:
|
| Power Source: | AC POWER | Voltage Input: | AC 230V/50Hz |
|---|---|---|---|
| Power: | ≤70W | Max Pressure: | ≥0.245Mpa（35Psi）@ 230V/50Hz |
| Rated Flow: | ≥6L/min 0.105Mpa（15Psi） | Current: | ≤0.6A |
| Noise: | ≤64dB(A) | Ambient: | 10-40°C |
| Insulation Class: | B | Thermal Protector: | KW-135℃ |
| Net Weight: | 1.5Kg | Restart Pressure: | 0 Kpa |
| High Light: | GSE Nebulizer Compressor Motor,Nebulizer Compressor Motor 70W,Oil Free Medical Air Compressor 6.0/min |
||

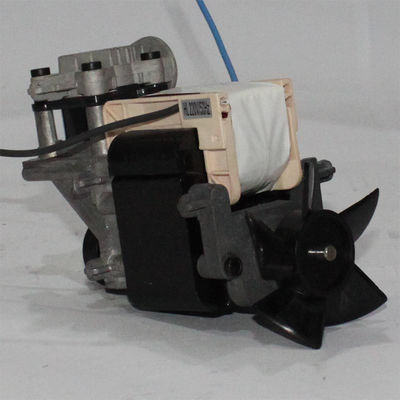

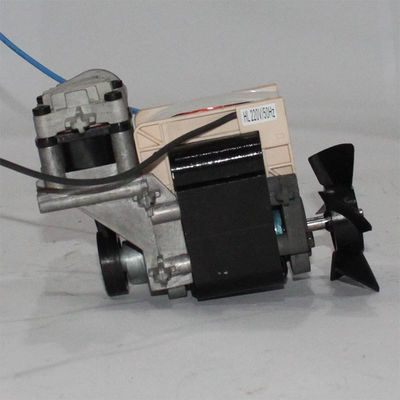

GSE compressor for medical nebulizer , ZWS100F-7.4/1.1 , 6.0/min , 70W
Product Descriptions:
ZWS100F-7.4/1.1 GSE medical nebulizer motor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement.
Durable construction - The wobble piston oil-less air compressor is designed with a durable construction that is capable of withstanding high pressures and temperatures. The piston is made of a high-strength alloy steel and is designed to resist wear and tear. Additionally, the cylinder walls are made of a corrosion-resistant material, ensuring a longer service life even in harsh environments.
Compact design - The wobble piston oil-less air compressor is designed with a compact design that allows for easy installation and transport. The small size of the compressor makes it easy to fit into tight spaces and allows for easy access in case of maintenance or repairs. Additionally, the lightweight construction also makes it easy to move around and transport if needed.
Specifications:
| Model | ZWS100F-7.4/1.1 |
| Voltage input(V) |
AC 230V/50Hz
|
| Power(W) | ≤70W |
| Max pressure(Pa) | ≥0.245Mpa(35Psi)@ 230V/50Hz |
| Rated flow(LPM) | ≥6L/min 0.105Mpa(15Psi) |
| Ambient(°C) | 10-40°C |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 1.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Single piston
2. Positive pressure
3. High performance cup seals
4. High quality bearings
Advantages:
1.Oil less operation
2.Long life
3.Free maintainance
4.Minitype
