Product Details:
|
| Power Source: | AC MOTOR | Input Pover: | 520W |
|---|---|---|---|
| Voltage: | 220V/50Hz | Max Vacuum(kPa): | ≤-90kPa |
| Rated Flow: | ≥9.6m³/h@0kPa | Ambient: | 0-40°C |
| Insulation Class: | B | Thermal Protector: | Automatic Reset 145±5℃ |
| Net Weight: | 10.3Kg | Restart Pressure: | 0kpa |
| High Light: | 50Hz Lab Oil Less Piston Vacuum Pump,Oil Less Piston Vacuum Pump 520W,520W Oilless Vacuum Pump For Freeze Dryer |
||

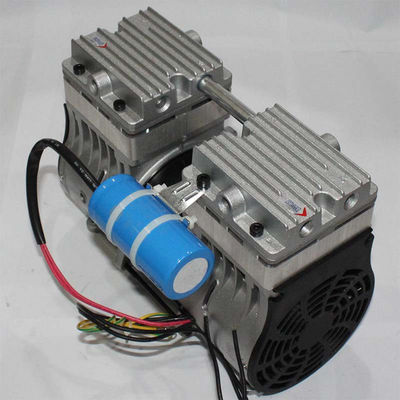

Vacuum pump ideal for Laboratory device , ZW400AS-160/-0.9 , 220V/50Hz , 520W
Product Descriptions:
Compact design - The wobble piston oil-less air compressor is designed with a compact design that allows for easy installation and transport. The small size of the compressor makes it easy to fit into tight spaces and allows for easy access in case of maintenance or repairs. Additionally, the lightweight construction also makes it easy to move around and transport if needed. This makes the compressor an ideal choice for applications where space is limited or if mobility is required.
Reduced wear and tear on internal components - The wobble piston oil-less air compressor is designed to reduce wear and tear on the internal components. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. This helps to reduce the wear and tear on the piston and cylinder walls, extending the service life of the compressor and ensuring reliable performance.
Specifications:
| Model | ZW400AS-160/-0.9 |
| Rated Voltage(V) | AC 220V/50Hz |
| Input Pover(W) | 520W |
| Max vacuum(kPa) | ≤-90kPa |
| Rated flow(LPM) | ≥9.6m³/h@0kPa |
| Ambient(°C) | 5-40℃ |
| Insulation class | B |
| Thermal protector | Automatic reset 145±5℃ |
| Net weight(Kg) | 10.3Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Oil less operation
2. Vacuum design
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Low noise Level
