Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC 12V |
|---|---|---|---|
| Input Power(W): | ≤220Watts | Rated Pressure: | 140Kpa |
| Rated Flow: | ≥45L/min @140 KPa /12V | Max Pressure: | ≥200KPa 12V |
| Thermal Protector: | N/A | Rated Speed: | ≥1700 RPM 12V |
| Insulation Class: | B | Net Weight: | 3.8Kg |
| Ambient: | 5-40℃ | Restart Pressure(Kpa): | 0KPa |
| High Light: | 220W Lab Air Compressor Oilless,Lab Air Compressor Oilless DC12V,Air Compressor For Laboratory Use DC12V |
||

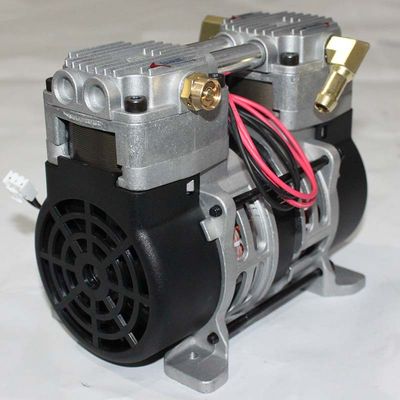

GSE ZW100Z12-45/1.4 , DC motor compressor , for loboratory analyzer , DC12V , 220W
Product Descriptions:
No need for an external lubrication system - The wobble piston oil-less air compressor does not require an external lubrication system like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. Additionally, the air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance. This eliminates the need for an external lubrication system and reduces the complexity of the installation and maintenance.
Longer service life - The wobble piston oil-less air compressor is designed to offer a longer service life than traditional air compressors. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. Additionally, the air cushion surrounding the piston helps to reduce the wear and tear on the piston and cylinder walls, resulting in a longer service life. This makes the compressor an ideal choice for applications that require a reliable and long-lasting performance.
Specifications:
| Model | ZW100Z12-45/1.4 |
| Rated Voltage(V) | DC 12V |
| Input Power(W) | ≤220W |
| Rated pressure(kPa) | ≥140KPa |
| Rated flow(LPM) | ≥45L/Min@140KPa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Net weight(Kg) | 3.8Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double head wobble piston
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
