Product Details:
|
| Power Source: | DC POWER | Rated Voltage(V): | DC 24V |
|---|---|---|---|
| Input Power(W): | ≤76Watts | Rated Pressure: | 62KPa |
| Rated Pressure(Vacuum): | -49kpa | Rated Flow: | ≥30 L/min@24V @62KPa |
| Rated Flow(Vacuum): | ≥20 L/min@24V @-49KPa | Noise: | ≤58dB(A) |
| Rated Speed: | 2000RPM 24V | Insulation Class: | B |
| Net Weight: | 1.28Kg | Ambient: | 5-40℃ |
| High Light: | VPSA Laboratory Oil Free Air Compressor,Laboratory Oil Free Air Compressor 76W,76W Laboratory Compressed Air For Portable Analyzer |
||

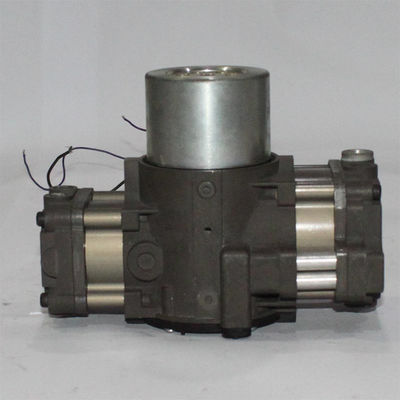

GSE PW120Z24-US016 , VPSA compressor , for oxygen generator , DC24V , 123W
Product Descriptions:
A VPSA compressor (Vacuum Pressure Swing Adsorption) is a type of compressor that uses an adsorption process to compress a gas. It works by adsorbing the gas on the surface of a material, usually activated carbon, and then compressing it by applying a vacuum. The process is then repeated to obtain a higher pressure. VPSA compressors are often used in applications such as vacuum distillation, gas separation, and gas storage.Oil-less feauture mean the compressor does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls.
Specifications:
| Model | PW120Z24-GSE |
| Rated Voltage(V) | DC 24V |
| Input Power(W) | ≤76W |
| Rated pressure(kPa) | 62KPa/-49KPa |
| Rated flow(Vaccum) | ≥20 L/min@24V @-49KPa |
| Rated flow(LPM) | ≥30 L/min@24V @62KPa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Net weight(Kg) | 1.28Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1.VPSA
2. High performance cup seal
3. High quality bearings
4. Die-cast components
Advantages:
1. Oil-less
2. Maintainance free
3. Long life
4. Portable
