Product Details:
|
| Power Source: | AC | Input Power: | ≤60W@220V/50Hz@100KPa |
|---|---|---|---|
| Voltage: | AC220V,50Hz（187V-242V） | Max Vacuum: | ≤-90KPa@ 220V/50Hz |
| Rated Flow: | ≥20 L/min 220V/50Hz@0KPa | Ambient: | 5~40℃ |
| Insulation Class: | B | Thermal Switch: | Auto-reset 135±5℃ |
| Net Weight: | 2.1Kg | Restart Pressure: | 0 Kpa |
| High Light: | 60W Laboratory Oil Free Air Compressor,Laboratory Oil Free Air Compressor 50Hz,50Hz Vacuum Oil Free Pump For Laboratory Equipment |
||

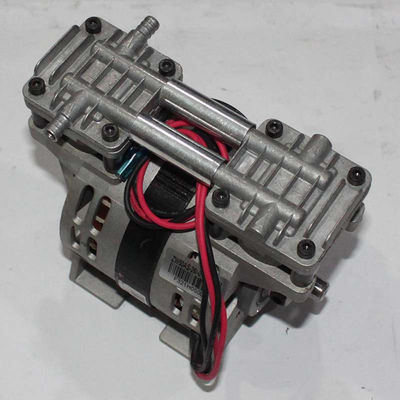

ZW50AS-26/-0.9 , Vacuum pump , for laboratory equipment , 220V/50Hz , 60Watts
Product Descriptions:
GSE oil-free air compressor is idealed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement. This ensures smooth and reliable operation with minimal vibration, resulting in longer service life and improved performance.
Reduced wear and tear on internal components - The wobble piston oil-less air compressor is designed to reduce wear and tear on the internal components. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. This helps to reduce the wear and tear on the piston and cylinder walls, extending the service life of the compressor and ensuring reliable performance.
Specifications:
| Model | ZW50AS-26/-0.9 |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤60W |
| Current(A) |
≤0.35A @220V/50Hz@100KPa |
| Rated flow(m3/h) |
≥20 L/min 220V/50Hz@0KPa |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | Auto-reset 135±5℃ |
| Net weight(Kg) | 2.1Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Vacuum
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
