Product Details:
|
| Power Source: | AC POWER | Input Power: | ≤240W@220V/50HZ@140KPa |
|---|---|---|---|
| Voltage: | 220V/50Hz | Rated Pressure: | 140Kpa |
| Rated Flow: | 45l/min 220V/50HZ @140KPa | Max Pressure: | 180KPa@198V/50HZ |
| Current: | 1.20A | Ambient: | 5-40°C |
| Insulation Class: | B | Thermal Protector: | Auto Reset 135±5°C |
| Net Weight: | 3.7 Kg | Restart Pressure: | 0 Kpa |
| High Light: | 1.2A Laboratory Oil Free Air Compressor,Laboratory Oil Free Air Compressor 245 W,Compact Design Pump Oil Free 245W |
||

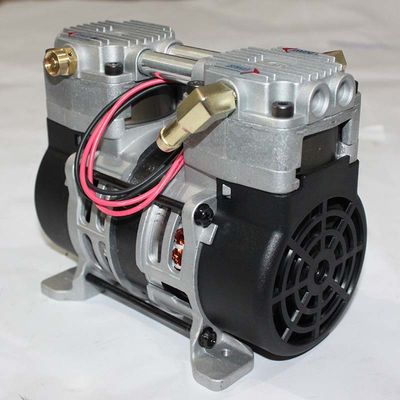

GSE ZW100A-45/1.4-JS036 , oil free , compact design , 220V , 45L/min , 245W , 1.2A
Product Descriptions:
High efficiency and low energy consumption - The wobble piston oil-less air compressor is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation. Additionally, the lack of friction also helps to reduce the heat generated by the compressor, resulting in cooler operation and improved energy efficiency.
Easy to install - The wobble piston oil-less air compressor is designed for easy and quick installation. All the components are designed to be easily assembled and connected, eliminating the need for complicated wiring or plumbing. Additionally, the compact size of the compressor makes it easy to fit into tight spaces, allowing for quick and easy installation. This makes the compressor an ideal choice for applications where a quick turnaround is needed.
Specifications:
| Model | ZW100A-45/1.4-JS036 |
| Rated Voltage(V) | 220V/50Hz |
| Input Pover(W) | ≤240W |
| Rated pressure(kPa) | 140 kPa |
| Rated flow(LPM) | 45L/min@140Kpa |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Thermal protector | Auto reset 135±5°C |
| Net weight(Kg) | 3.7Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
