Product Details:
|
| Power Source: | AC POWER | Input Power: | ≤125W |
|---|---|---|---|
| Voltage: | AC220V 50HZ (187V-242V) | Rated Pressure: | 140KPa |
| Rated Flow: | 16l/min 220V/50HZ @140KPa | Max Pressure: | ≥200KPa/187V |
| Capacitor: | 4.0μF±5% | Ambient: | 5-40°C |
| Insulation Class: | B | Thermal Protector: | Auto Reset 135±5°C |
| Net Weight: | 2.0Kg | Restart Press: | 0 Kpa |
| High Light: | 125W Oil Free High Vacuum Pump,Oil Free High Vacuum Pump 220V 50Hz,125W Vacuum Pump Oilless For Laboratory Analyzer |
||

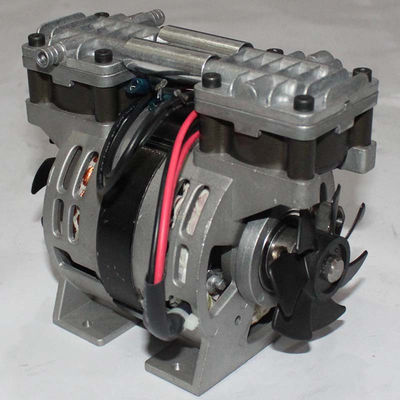

GSE ZW80A-16/1.4 , ideal for laboratory analyzer , 220V 50Hz , 125W
Product Descriptions:
Compact design - The wobble piston oil-less air compressor is designed with a compact design that allows for easy installation and transport. The small size of the compressor makes it easy to fit into tight spaces and allows for easy access in case of maintenance or repairs. Additionally, the lightweight construction also makes it easy to move around and transport if needed. This makes the compressor an ideal choice for applications where space is limited or if mobility is required.
Easy to install - The wobble piston oil-less air compressor is designed for easy and quick installation. All the components are designed to be easily assembled and connected, eliminating the need for complicated wiring or plumbing. Additionally, the compact size of the compressor makes it easy to fit into tight spaces, allowing for quick and easy installation. This makes the compressor an ideal choice for applications where a quick turnaround is needed.
Specifications:
| Model | ZW80A-16/1.4 |
| Rated Voltage(V) | AC 220V/50HZ |
| Input Pover(W) | ≤125W |
| Rated pressure(kPa) | 140 kPa |
| Rated flow(LPM) | 16L/min |
| Ambient(°C) | 5-40°C |
| Insulation class | B |
| Thermal protector | Auto reset 135±5°C |
| Net weight(Kg) | 2.0Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
