Product Details:
|
| Power Source: | AC | Input Power: | ≤630W @700Pa/220V/50Hz |
|---|---|---|---|
| Voltage: | 220V/50Hz | Max Pressure: | ≥800KPa @187V/50Hz |
| Rated Pressure: | 700KPa | Rated Flow: | 2.2 M3/h@700KPa/220V/50Hz |
| Capacitor: | 25μF±5% | Ambient: | 5~40℃ |
| Insulation Class: | B | Thermal Switch: | Auto-reset 145±5℃ |
| Net Weight: | 10.5Kg | Restart Pressure: | 0 Kpa |
| High Light: | Compact Oil Free Compressor 70db,70db Oil Free Vacuum Pump For Laboratory,630W Oil Free Vacuum Pump For Laboratory |
||

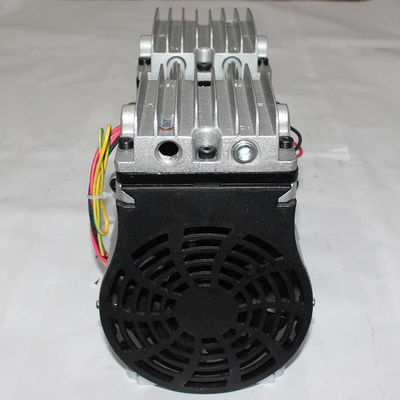

ZW500A-40/7-(2.5)-GSE , Compact design , oil free , 220V/50Hz , 630Watts , 70db(A)
Product Descriptions:
The GSE oil-less air compressor is designed for reliable and low-vibration operation. The floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement. This ensures smooth and reliable operation with minimal vibration, resulting in longer service life and improved performance.
Moreover,our wobble piston oil-less air compressor does not require an external lubrication system like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. Additionally, the air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance. This eliminates the need for an external lubrication system and reduces the complexity of the installation and maintenance.
Specifications:
| Model | ZW500A-40/7-(2.5)-GSE |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤630W |
| Rated pressure(kPa) | 700KPa |
| Rated flow(m3/h) |
≥38L/min@700KPa |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | Auto-reset 145±5℃ |
| Net weight(Kg) | 10.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
