Product Details:
|
| Power Source: | AC MOTOR | Power: | ≤110W@110KPa/230V/50Hz |
|---|---|---|---|
| Voltage: | 230V/50Hz | Max Preasure(kPa): | ≥210KPa |
| Rated Flow: | ≥6.5L/Min@110KPa | Ambient: | 0-40°C |
| Insulation Class: | B | Thermal Protector: | KW-135℃ |
| Net Weight: | 1.5Kg | Restart Pressure: | 0KPa |
| High Light: | GSE Oil Free Piston Compressor,Oil Free Piston Compressor Nebulizer,Oil Free Mini Air Compressor 110watts |
||

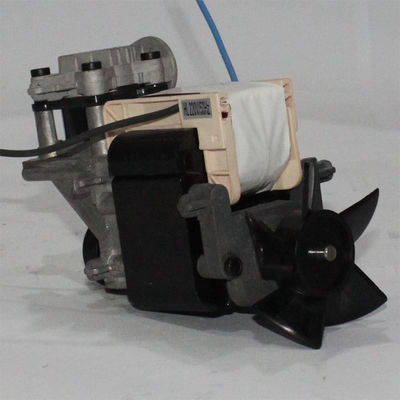

GSE nebulizer compressor ZWS100F-6/1.1 AC 220V/50Hz,110watts,single piston
Product Descriptions:
Nebulizer compressor,nebulizer pump,nebulizer motor is actually refering to the core component inside the Nebulizer---A oil-free air compressor.
The compressor draws in air and creates a flow of 6-8LPM at high preasure and blow it out.GSE ZWS100F motors are well design for medical nebulizer devices.
Specifications:
| Model | ZWS100F-6/1.1 |
| Rated Voltage(V) | 230V/50Hz |
| Input Pover(W) | ≤110W@110KPa/230V/50Hz |
| Max preassure(kPa) | ≥210KPa |
| Rated flow(LPM) | ≥6.5L/Min@110KPa |
| Ambient(°C) | 10-40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 1.5Kg |
| Restart pressure(Kpa) | 0KPa |
Features:
1. Oil less operation
2. Single piston head
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Low noise Level
