Product Details:
|
| Power Source: | DC POWER | Power: | ≤480W @206.8KPa/310 |
|---|---|---|---|
| Voltage: | 310V DC | Max Preasure(kPa): | 280KPa@310V |
| Rated Flow: | ≥110L/min@206.8KPa/310V | Ambient: | 5-40℃ |
| Insulation Class: | B | Thermal Protector: | N/A |
| Net Weight: | ＜6.5kg | Restart Pressure: | 0KPa |
| Highlight: | 480w Replacement Oil Less Air Compressor Pump,480w Kompresor Oil Free,Kompresor Oil Free For Portable Device DC310V |
||

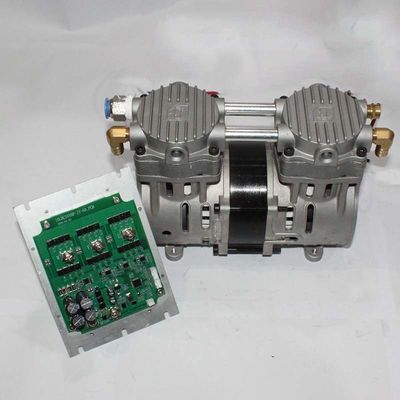

ZW300Z310-110/2 , DC motor pump for portable device , 480watts , DC310V
Product Descriptions:
GSE ZW300Z310-110/2 , driven by a DC motor , could achieve air volume flow as high as 110LPM at a rated pressure of 200kpa,are design to suit for onboard oxygen concentrator,portable lab analysiser.Depending on the speed and load changes,the compressor may also outputs defferent volume flow,which could be used in a variety of applications.
,
Specifications:
| Model | ZW300Z310-110/2 |
| Rated Voltage(V) | DC 310V |
| Input Pover(W) | ≤480W @206.8KPa/310 |
| Max preassure(kPa) | 280KPa@310V |
| Rated flow(LPM) | ≥110L/min@206.8KPa/310V |
| Ambient(°C) | 5-40℃ |
| Insulation class | B |
| Thermal protector | N/A |
| Net weight(Kg) | 6.5Kg |
| Restart pressure(Kpa) | 0KPa |
Features:
1. Oil less operation
2. BRDC motor
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Clean air source
6. Compact and portable
