Product Details:
|
| Power Source: | DC POWER | Power: | ≤145W |
|---|---|---|---|
| Voltage: | 24V DC | Max Preasure(kPa): | ≥210KPa |
| Rated Flow: | 23L/min＠62kPa & 20L/min＠-49kPa | Ambient: | 5-40℃ |
| Insulation Class: | B | Thermal Protector: | N/A |
| Net Weight: | 1.4Kg | Restart Pressure: | 0KPa |
| High Light: | GSE Oil Less Air Compressor 24V,Oil Less Air Compressor VPSA,DC 145W Vacuum Pressure Pump |
||

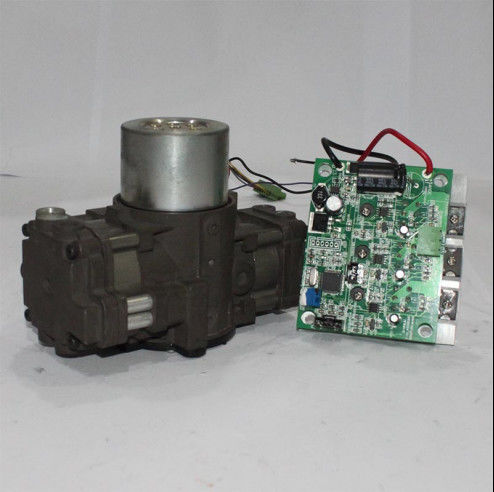

GSE oil-free air compressor , PW120Z24 , VPSA 24V DC 145W ,vacuum and pressure pump
Product Descriptions:
GSE PW120Z24 is typically design for portable Vacuum Pressure Swing Adsorption(VPSA) Oxygen generators.A unique cylinder head design which could provide pressure and vacuum at the same time to meet the VPSA oxygen system.
Specifications:
| Model | PW120Z24 |
| Rated Voltage(V) | 24V DC |
| Input Pover(W) | ≤145W |
| Max preassure(kPa) | ≥210KPa |
| Rated flow(LPM) | 23L/min＠62kPa 20L/min＠-49kPa |
| Ambient(°C) | 5-40℃ |
| Insulation class | B |
| Thermal protector | N/A |
| Net weight(Kg) | 1.4Kg |
| Restart pressure(Kpa) | 0KPa |
Features:
1. Oil less operation
2. VPSA compressor
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Clean air source
6. Compact and portable
