Product Details:
|
| Power Source: | AC POWER | Power: | <395W@206.8 KPa@110V/60Hz |
|---|---|---|---|
| Voltage: | AC110V,60Hz | Rated Preasure(kPa): | 206.8KPa |
| Rated Flow: | 70L/min@206.8KPa | Max Pressure: | 230KPa@99V |
| Ambient: | 5-40℃ | Insulation Class: | B |
| Thermal Protector: | KW-135℃ | Mounting Dimension: | 147x83mm(4-M6) |
| Restart Pressure: | 0kpa | ||
| High Light: | GSE Inflation Compressor Oilless,Inflation Compressor Oilless 395W,395W Low Noise Air Compressor |
||

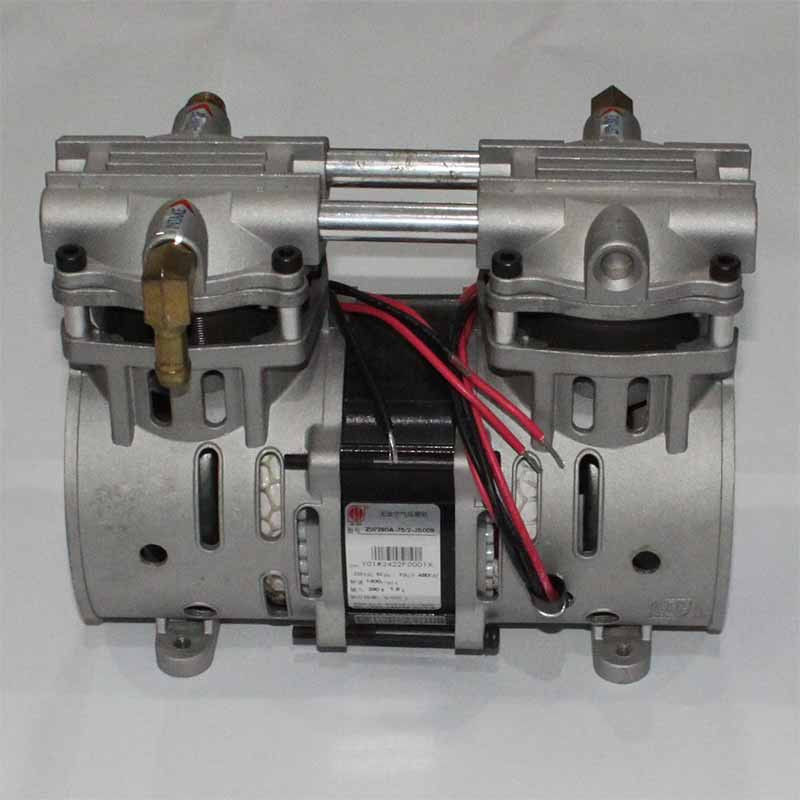

ZW280B2-70/2A-JS036 , GSE oil-free compressor , low noise level , AC110V/60Hz , 395W
Product Descriptions:
ZW280B2-70/2A-JS036 does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. This air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance.
High efficiency and low energy consumption - The wobble piston oil-less air compressor is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation.
Longer service life - The wobble piston oil-less air compressor is designed to offer a longer service life than traditional air compressors. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls. Additionally, the air cushion surrounding the piston helps to reduce the wear and tear on the piston and cylinder walls, resulting in a longer service life.
Specifications:
| Model | ZW280B2-70/2A-JS036 |
| Rated Voltage(V) | AC110V,60Hz |
| Input Power(W) |
<395W@206.8 KPa@110V/60Hz |
| Rated preassure(Kpa) | 206.8KPa |
| Rated flow(LPM) | 70L/min@206.8KPa |
| Ambient(°C) | 5-40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Mounting dimension |
147x83mm(4-M6) |
| Restart pressure(Kpa) | 0KPa |
Features:
1. Oil less operation
2. Twin head
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Low noise Level
6. Clean air source
