Product Details:
|
| Power Source: | AC POWER | Power: | ≤370W@50Hz,≤440W@60Hz |
|---|---|---|---|
| Voltage: | AC100V/50Hz/60HZ (90V～110V) | Rated Preasure(kPa): | 30PSI |
| Rated Flow: | ≥60LPM@50Hz , ≥70LPM@60Hz 30PSI | Max Pressure: | ≥250kPa@AC90V |
| Noise: | ≤58dB(A)@50Hz , ≤62dB(A)@60Hz | Current: | ≤3.9A@50Hz , ≤4.3A@60Hz |
| Ambient: | 5-40℃ | Insulation Class: | B |
| Thermal Protector: | KW-135℃ | Net Weight: | 6.8Kg±1Kg |
| Restart Pressure: | 0kpa | ||
| High Light: | AC100V Low Noise Compressor Motor,Oil Free Piston Air Compressor,60Hz Low Noise Compressor Motor |
||

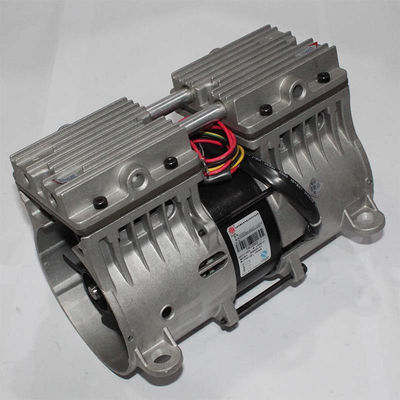

ZW248E-60/2D-GSE , oil-free compressor , long life , AC100V/50Hz/60HZ
Product Descriptions:
Model ZW248E-60/2D-GSE oil free compressor not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. This air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance.
High efficiency and low energy consumption - The wobble piston oil-less air compressor is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation.
Reduced wear and tear on internal components - The wobble piston oil-less air compressor is designed to reduce wear and tear on the internal components. This is due to the floating piston design, which eliminates the need for oil-based lubrication and reduces the friction between the piston and the cylinder walls.
Specifications:
| Model | ZW248E-60/2D-GSE |
| Rated Voltage(V) | AC100V/50Hz/60HZ (90V～110V) |
| Input Power(W) |
≤370W@50Hz,≤440W@60Hz |
| Rated preassure(PSI) | 30PSI |
| Rated flow(LPM) | ≥3.6m³/h@206.8kPa |
| Ambient(°C) | 5-40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) |
6.8Kg±1Kg |
| Restart pressure(Kpa) | 0KPa |
Features:
1. Oil less operation
2. Twin head
3. High quality cup seals
4. High perfomance bearings
Advantages:
1. Oil less
2. Maintenance-free
3. Minitype
4. Long-life
5. Low noise Level
6. Clean air source
