Product Details:
|
| Power Source: | AC | Input Power: | ≤370W@206.8KPa/220V/50Hz |
|---|---|---|---|
| Voltage: | 220V/50Hz | Lock-up Pressure: | ≥250KPa |
| Current: | 1.7A | Rated Pressure: | 206.8KPa |
| Rated Flow: | ≥63L/Min@206.8KPa | Noise Level: | ≤58dB |
| Ambient: | 5~40℃ | Insulation Class: | B |
| Thermal Switch: | KW-135℃ | Net Weight: | 6.5Kg |
| Restart Pressure: | 0 Kpa | ||
| High Light: | 50Hz Double Piston Air Compressor Oilless,Double Piston Air Compressor Oilless 370W,370W Clean Air Compressor 220V |
||

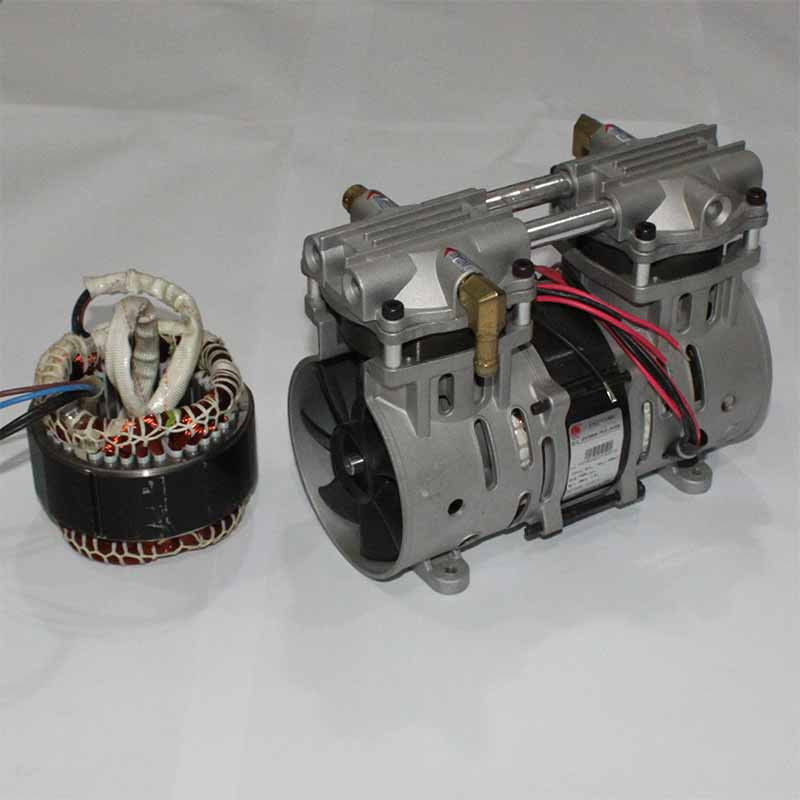

Swing piston pump , GSE ZW280A-63/2 , oil-less , clean air , 220V/50Hz , 370W
Product Descriptions:
A drive mechanism that powers a piston to compress air. The piston is driven by a crankshaft, which is powered by an electric motor. The piston compresses the air inside a cylinder, and the compressed air is then sent through a discharge valve. The air is then used to power air tools such as nail guns, air drills, and spray guns. The oil-less design of these compressors eliminates the need for regular maintenance, such as oil changes, which makes them more convenient and economical to operate.
Specifications:
| Model | ZW280A-63/2 |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤370W@206.8KPa/220V/50Hz |
| Rated pressure(kPa) | 206.8KPa |
| Rated flow(LPM) | ≥63L/Min@206.8KPa |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 6.5Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
