Product Details:
|
| Power Source: | AC | Input Power: | ≤310W@140KPa/120V/60Hz |
|---|---|---|---|
| Voltage: | 120V/60Hz | Max Pressure: | ≥210KPa |
| Rated Pressure: | 20psi | Rated Flow: | ≥68L/Min@20psi |
| Noise Level: | ≤55dB @20psi | Ambient: | 5~40℃ |
| Insulation Class: | B | Thermal Switch: | KW-135℃ |
| Net Weight: | 4.7Kg | Restart Pressure: | 0 Kpa |
| High Light: | 310W Oil Free Medical Air Compressors,Oil Free Medical Air Compressors 120V 60Hz,60Hz 5L Oxygen Generator Compressor |
||

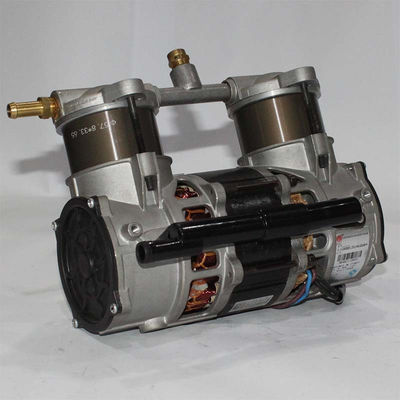

ZW280H2-68/1.4N , ideal for 5L oxygen generator compressor , 120V/60Hz , 310W
Product Descriptions:
No lubrication or oil-based maintenance required - The wobble piston oil-less air compressor does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. This air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance. Additionally, the lack of lubrication also reduces the risk of oil leaks, spills, and contamination of the compressed air.
High efficiency and low energy consumption - The wobble piston oil-less air compressor is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation. Additionally, the lack of friction also helps to reduce the heat generated by the compressor, resulting in cooler operation and improved energy efficiency.
Specifications:
| Model | ZW280H2-68/1.4N |
| Rated Voltage(V) | 120V/60Hz |
| Input Power(W) | ≤310W@140KPa/120V/60Hz |
| Rated pressure(kPa) | 140KPa |
| Rated flow(LPM) | ≥68L/Min@140KPa |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 4.7Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
