Product Details:
|
| Power Source: | AC | Input Power: | ≤510W |
|---|---|---|---|
| Voltage: | 220V/50Hz | Max Pressure: | ≥280KPa |
| Rated Pressure: | 206.8KPa | Rated Flow: | ≥90L/min@206.8KPa |
| Ambient: | 5~40℃ | Insulation Class: | B |
| Thermal Switch: | KW-145℃ | Net Weight: | 7.6Kg |
| Restart Pressure: | 0 Kpa | ||
| Highlight: | 510W Small Oilless Air Compressor,Small Oilless Air Compressor Long Life 50Hz,510W Oil Free Medical Air Compressors |
||

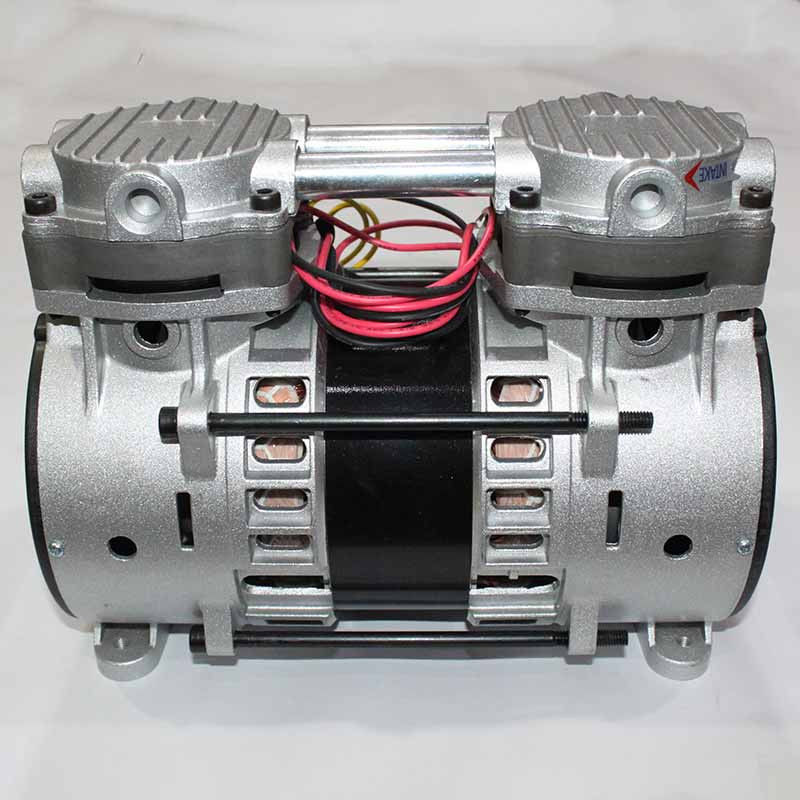

ZW400A-90/2-(3) , GSE oilless compressor , long life , 220V/50Hz , 510W
Product Descriptions:
No lubrication or oil-based maintenance required - The wobble piston oil-less air compressor does not require any lubrication or oil-based maintenance like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. This air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance. Additionally, the lack of lubrication also reduces the risk of oil leaks, spills, and contamination of the compressed air.
Reliable, low-vibration operation - The wobble piston oil-less air compressor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement. This
ensures smooth and reliable operation with minimal vibration, resulting in longer service life and improved performance.
Specifications:
| Model | ZW400A-90/2-(3) |
| Rated Voltage(V) | 220V/50Hz |
| Input Power(W) | ≤510W |
| Rated pressure(kPa) | 206.8KPa |
| Rated flow(LPM) | ≥90L/min@206.8KPa |
| Ambient(°C) | 5~40℃ |
| Insulation class | B |
| Thermal protector | KW-145℃ |
| Net weight(Kg) | 7.6Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Double pistion
2. Oil-less operation
3. long life bearing
4. High performance cup seal
Advantages:
1. Clean air source
2. Maintenance-free
3. long life
4. low sound level
